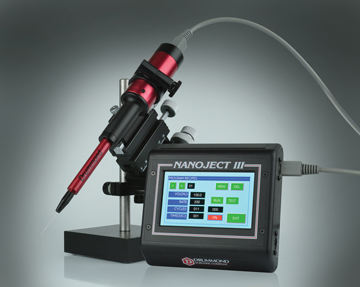

The New Programmable Nanoject III

• Proven Hydraulic Technology – Ensures Consistent Injection Volumes

• Use Friendly Touchscreen Operation – Potential Applications Expanded

• Easy Positive Micropipet Attachment – No O-Rings Required

The Drummond Scientific Company, a world leader in liquid handling devices for the laboratory, has recently introduced their New Programmable Nanoject III. The next generation in high precision microinjection, the Nanoject III features user friendly touchscreen operation which enables a wide range of programmed injection applications.

The Drummond Nanoject III includes a number of new features which improve operation. The injection system is comprised of proven hydraulic technology to ensure consistent injection volumes. In addition, micropipet attachment is easier than ever with no O-rings required.

Learn More

Share this post

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on email

The New Nanoject III Is Now Available!

Nanoject II vs. Nanoject III Comparison

Both units utilize the same glass capillaries for pulling micropipettes. Due to the new improved method of securing the micropipette, smaller tips can be pulled and utilized on the Nanoject III. No O-rings to wear out. A micro “chuck” is used, and it simplifies attachment of the micropipette once backfilled with oil. The Nanoject III’s auto HOMING feature will eliminate the need to “rehome the unit as in the Nanoject II. This can reduce, if not totally eliminate, jamming of the plunger. Now available for the Nanoject II is the new Digital Control Box which has all the functionality of the original control box but now features a user friendly, easy to read touchscreen.

Product Name Nanoject II Nanoject III
Injection volumes 2.3 nL-69 nL 0.6 nL-999.9 nL
Rate of injection 46 nL/sec.& 23 nL/sec. only 1 nL/sec.-200 nL/sec.
Injection counter No Yes
Programmable multiple injections No Yes
Programmable frequency between injections No Yes
Auto HOMING of plunger No Yes
Micropipette I.D. size 10 µm minimum 2-3 µm minimum
Optional Footswitch Yes; inject only Yes; fill, empty and inject capability
Color, Touch Sensitive Keypad No; fill, empty, inject buttons only. Optional Digital Control Box Upgrade available Yes; multi screens
External computer interface Use of footswitch contact to inject. Injector has to be finished its injection at the speed rate of the Nanoject II before it will accept another pulse Use of a special opto-isolated input to allow the user to control injection rate and injection volume

Drummond Pipet-Aid® Controller Comparison Chart

Use this comparison chart to understand the difference between Drummond Pipet-Aid® Controller models and their useful features. This information will help you choose the best pipette controller to deliver the most accurate results for your intended applications.

Feature Other Pipette Controllers Portable Pipet- Aid® XP Pipette Controller Portable Pipet- Aid® XL Pipette Controller Pipet- Aid® Hood Mate® Pipette Controller
Cordless/Portable
3 Speed Aspiration & Dispensing X
Removable Stand X X
Use in hood/laminar flow cabinet X X
Weight 230g 214g 214g 122g
