Products Pipet-Aid Portable Pipet-Aid® XL Pipette Controller

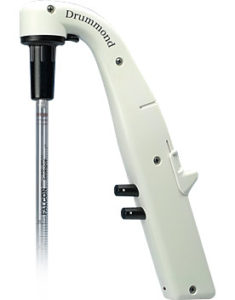

Portable Pipet-Aid® XL Pipette Controller

Portable Pipet-Aid® XL Pipette Controller New Ergonomic Design Reduces Fatigue When Pipetting Under a Hood Longer lightweight handle lowers your arm position to reduce strain New quiet, more efficient pump extends operation period between charges Can be charged while in use to eliminate downtime Three-speed settings provide more precise control for use in the pipet filler mode and the pipette dispenser mode

$430.00

Out of stock

Specifications

Size: 10″

Weight: 8 oz.

Capacity: Accepts 1 to 100 mL pipets

Battery: Ni-MH (3.6V/700 mAh)

Catalog Information

	Cat. No.	Description
Buy Now	4-000-105	Portable Pipet-Aid XL, 110V
	4-000-205	Portable Pipet-Aid XL 240V, CE, Euro
	4-000-205-A	Portable Pipet-Aid XL 240V, Australia
	4-000-205-E	Portable Pipet-Aid XL 230V, CE, UK
Buy Now	4-000-065	XP2 Power Supply 10-240V, 50/60Hz*Now Replaces: 4-000-066, 4-000-066-A, 4-000-066-E

Replacement Parts

	Cat. No.	Diagram No.	Description
	4-000-067	1	XL Handle Shell
Buy Now	4-000-079	1	EZ Grip Nosepiece - Black
Buy Now	4-000-079-B	1	EZ Grip Nosepiece - Blue
Buy Now	4-000-079-G	1	EZ Grip Nosepiece - Green
Buy Now	4-000-079-O	1	EZ Grip Nosepiece - Orange
Buy Now	4-000-079-R	1	EZ Grip Nosepiece - Red
Buy Now	4-000-079-Y	1	EZ Grip Nosepiece - Yellow
Buy Now	4-000-079-Z	1	EZ Grip Nosepiece - Assorted
Buy Now	4-000-002	3	Rubber Insert (2/pk)

Buy Now	4-000-051	4	Self-locking TC Filter 5/pk
Buy Now	4-000-051-S	4	Sterile Self-locking TC Filter 5/pk
Buy Now	4-000-052		Self-locking TC Filter 50/pk
Buy Now	4-000-052-S		Sterile Self-locking TC Filter 50/pk
Buy Now	4-000-057	5	TC Rubber Gaskets (Pair)
	4-000-063	6	Handle Connector XL
	4-000-064	7	Nosepiece Release XL
	4-000-072	8	Switch Operator XP/XL
Buy Now	4-000-073	9	Valve Body XP/XL (complete with buttons and springs)
		10	Valve Body Slide (Yellow) Included with Valve Body
	4-000-061	13	XL Pump, board, wire harness
		14	Pump/Valve body connecting tubing included with pump
Buy Now	4-000-036	15	Battery Pack (XL only)
Buy Now	4-000-065	Not Shown	XL Power Supply 10-240V, 50/60Hz*Now Replaces: 4-000-066, 4-000-066-A, 4-000-066-E
	4-000-062	16	XL Hand Rest
Buy Now	4-000-068	17	XL Stand
Buy Now	4-000-065	Not Shown	XL Power Supply/Charger 110V, 6 VDC/200 mA
Buy Now	4-000-087	Not Shown	TC Nosepiece Kit with 4 filters
Buy Now	4-000-087-G	Not Shown	TC Nosepiece Kit, Gray, with 4 filters
Buy Now	4-000-089	Not Shown	Pipet-Aid Holster-Type Wall Bracket
	4-000-525	11	Button Assembly XP2/XL, includes springs (12)

Instruction Manual

Operation Manual for the Drummond Pipet-Aid® XL

Download Now

Certificates

Keep Movement at a Minimum

The Portable Pipet-Aid® XL Pipette Controller adds comfort without giving up control when under a hood. Repetitive lifting and angeling your arm can be exhausting. Arm motion is reduced and extended pipet use is made easier with the ergonomically designed, longer handle and an adjustable sliding hand rest. Enjoy the accuracy, performance and convenience of our industry-leading Pipet-Aids in a state-of-the-art tool made specifically to alleviate arm fatigue.

The Portable Pipet-Aid® XL also features a new quieter, more powerful pump, and comes complete with power supply/charger, 4 extra filters, and a holster type wall bracket, and a removable stand.

All of our products are proudly made in the USA.

What Portable Pipet-Aid® XL Pipette Controller Users Say

Contact Our Team

Have questions about Drummond Scientific, device manufacturing, or our products? Reach out.

General Contact

Need information on Drummond’s services for your needs? Connect with our support team

Shop Support

Looking to place an order through our online store or by phone? Connect with our commerce team

Product Support

Are you an existing customer with a question or concern? Connect with our customer care team

Careers

View available opportunities and learn what it takes to excel with Drummond Scientific.

The New Nanoject III Is Now Available!

Nanoject II vs. Nanoject III Comparison

Both units utilize the same glass capillaries for pulling micropipettes. Due to the new improved method of securing the micropipette, smaller tips can be pulled and utilized on the Nanoject III. No O-rings to wear out. A micro “chuck” is used, and it simplifies attachment of the micropipette once backfilled with oil. The Nanoject III’s auto HOMING feature will eliminate the need to “rehome the unit as in the Nanoject II. This can reduce, if not totally eliminate, jamming of the plunger. Now available for the Nanoject II is the new Digital Control Box which has all the functionality of the original control box but now features a user friendly, easy to read touchscreen.

Product Name	Nanoject II	Nanoject III
Injection volumes	2.3 nL-69 nL	0.6 nL-999.9 nL
Rate of injection	46 nL/sec.& 23 nL/sec. only	1 nL/sec.-200 nL/sec.
Injection counter	No	Yes
Programmable multiple injections	No	Yes
Programmable frequency between injections	No	Yes
Auto HOMING of plunger	No	Yes
Micropipette I.D. size	10 µm minimum	2-3 µm minimum
Optional Footswitch	Yes; inject only	Yes; fill, empty and inject capability
Color, Touch Sensitive Keypad	No; fill, empty, inject buttons only. Optional Digital Control Box Upgrade available	Yes; multi screens
External computer interface	Use of footswitch contact to inject. Injector has to be finished its injection at the speed rate of the Nanoject II before it will accept another pulse	Use of a special opto-isolated input to allow the user to control injection rate and injection volume

Drummond Pipet-Aid® Controller Comparison Chart

Use this comparison chart to understand the difference between Drummond Pipet-Aid® Controller models and their useful features. This information will help you choose the best pipette controller to deliver the most accurate results for your intended applications.

Feature	Other Pipette Controllers	Portable Pipet- Aid® XP Pipette Controller	Portable Pipet- Aid® XL Pipette Controller	Pipet- Aid® Hood Mate® Pipette Controller
Cordless/Portable	✓	✓	✓	✓
3 Speed Aspiration & Dispensing	X	✓	✓	✓
Removable Stand	X	✓	✓	X
Use in hood/laminar flow cabinet	X	X	✓	✓
Weight	230g	214g	214g	122g

Portable Pipet-Aid® XL Pipette Controller

Keep Movement at a Minimum
